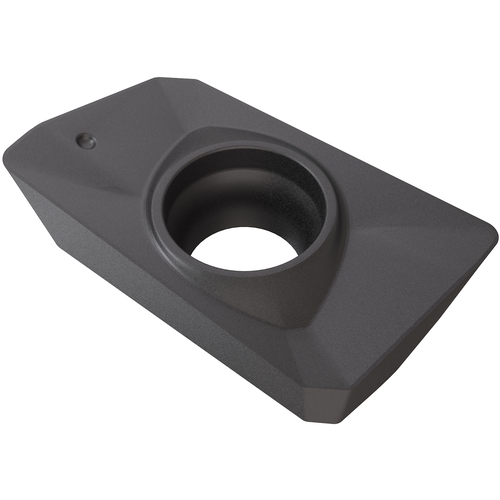

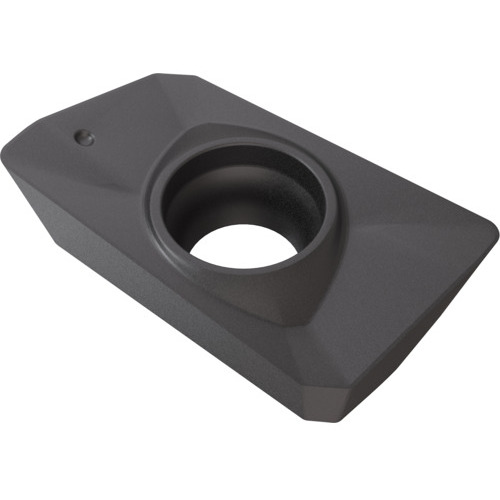

APMT160408PDTR-YG602/APMT160408PDTR
Milling Insert; 0.5748″ Length × 3/16″ Thickness ; YG602 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | APMT |
| Cutting Edge Length (L) | 0.5748″ | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/32″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 14″ | Series/List # | APMT |
| Inscribed Circle Diameter (IC) | 0.362″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3/16″ | Tool Type | Milling Insert |
| Wiper Edge Length (BS) | 0.044″ | Coating Process | PVD |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN | Cutting Edge Effective Length (LE) | 0.5748″ |
| Grade | YG602 | Measurement Type | Inch |
| Shape | Parallelogram 80° |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.014
