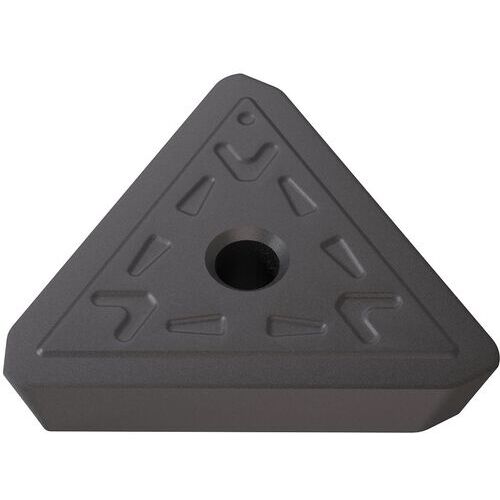

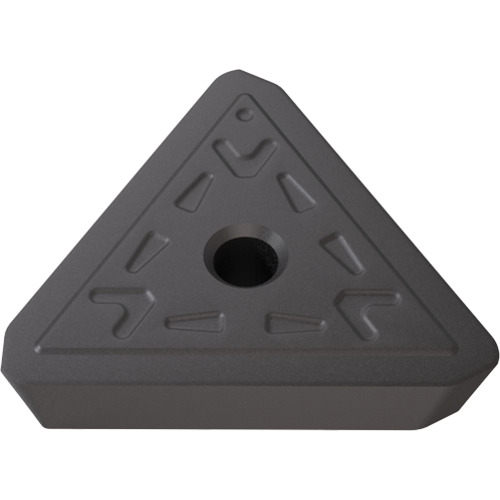

TPKN1603PDTR-YG602/TPKN32PDTR
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | TPKN |
| Corner Radius (RE) | 0.047″ | Clearance Angle Major (AN) | 11 Degrees |
| Depth of Cut Maximum (APMX) | 12″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Series/List # | TPKN |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.047″ | Tool Type | Milling Insert |
| Insert Included Angle (EPSR) | 90 Degrees | Coating Process | PVD |
| Coating | TiAlN | Number of Cutting Edges | 3 |
| Grade | YG602 | Measurement Type | Inch |
| Shape | Triangle |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.130
