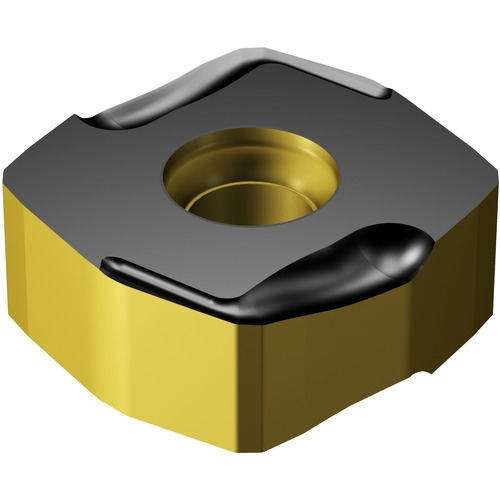

N3651505ZNEKW4 3220
Milling Insert; 6.4 mm Length × 5.66 mm Thickness ; 3220 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Shape | Square |
| Cutting Edge Length (L) | 6.4 mm | Insert Style | N3651505ZNEKW4 3 |
| Corner Radius (RE) | 0.55 mm | Corner Chamfer Width (CHW) | 0.9 mm |
| Inscribed Circle Diameter (IC) | 15 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5.66 mm | Chip Breaker Type | KW4 |
| Insert Included Angle (EPSR) | 0 Degrees | Hole Diameter | 4.6 mm |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
| Grade | 3220 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.384
