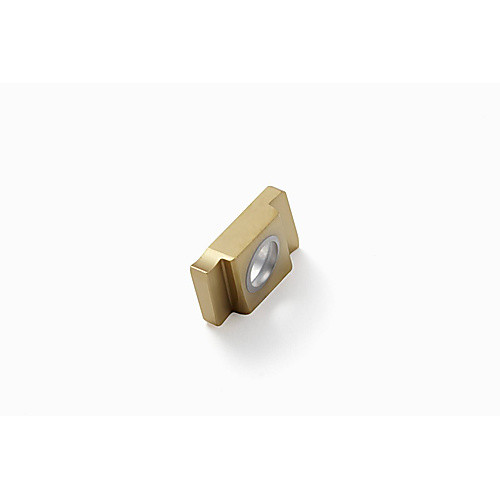

R335.15-13130FG-E08
Milling Insert; R335.15-13130FG-E08 F40M F40M × 0.354″ Width × 0.052″ Thickness ; Carbide ; TiAlN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Shape | Parallelogram |
| Cutting Edge Length (L) | 0.5315″ | Insert Style | R335 |
| Depth of Cut Maximum (APMX) | 0.0787″ | Insert Size | 13130 |
| Insert Width (W1) | 0.354″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3543″ | Chip Breaker Type | E08 |
| Insert Thickness (S) | 0.052″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
| Grade | F40M |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
