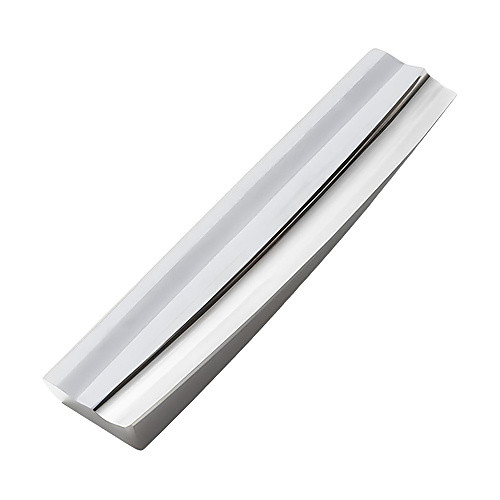

R235.15-080-E05
Milling Insert; 2.161″ Length × 0.463″ Width × 0.197″ Thickness ; HX ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | HX |
| Cutting Edge Length (L) | 2.161″ | Shape | Rectangle |
| Corner Radius (RE) | 0.016″ | Insert Style | R235 |
| Depth of Cut Maximum (APMX) | 2.1554″ | Insert Size | 80 |
| Insert Width (W1) | 0.463″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.4626″ | Chip Breaker Type | E05 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.079
