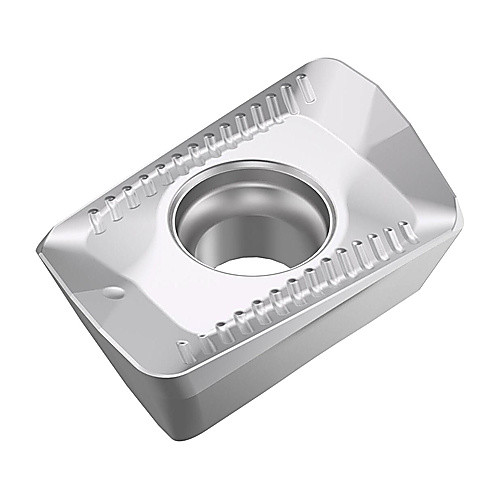

XOMX10T308TR-ME07 MS2050 INSERT
Milling Insert; 9.3 mm Length × 6.9 mm Width × 3.83 mm Thickness ; MS2050
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Parallelogram |
| Cutting Edge Length (L) | 9.3 mm | Insert Style | XOMX |
| Corner Radius (RE) | 0.8 mm | Insert Size | 10T308 |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 6.9 mm | Chip Breaker Type | ME07 |
| Inscribed Circle Diameter (IC) | 6.9 mm | Hole Diameter | 3 mm |
| Insert Thickness (S) | 3.83 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiAlN | NbN | | Number of Cutting Edges | 2 |
| Grade | MS2050 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
