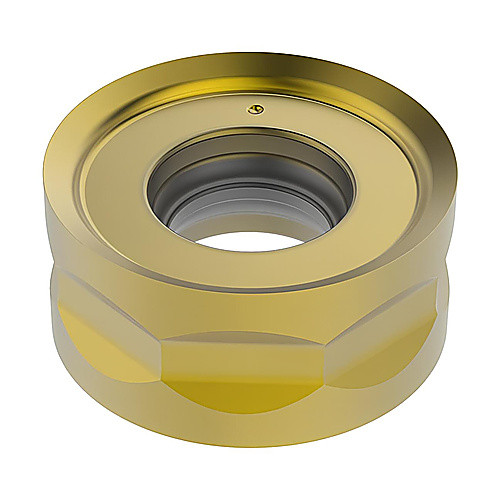

RNMU1204M0-ME10 F40M MILLING INSERT
Milling Insert; RNMU1204M0-ME10 F40M F40M × 4.8 mm Thickness
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Shape | Round |
| Cutting Edge Length (L) | 12 mm | Insert Style | RNMU |
| Corner Radius (RE) | 6 mm | Insert Size | 1204 |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 12 mm | Chip Breaker Type | ME10 |
| Inscribed Circle Diameter (IC) | 12 mm | Hole Diameter | 4.8 mm |
| Insert Thickness (S) | 4.8 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 16 |
| Grade | F40M |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
