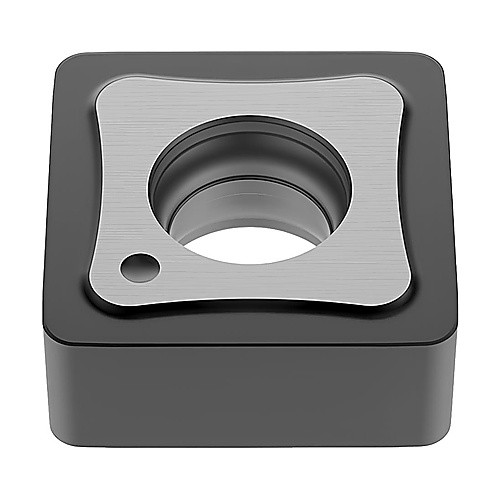

SNMU160612TN-MD16 MK1500 INSERT
Milling Insert; 16 mm Length × 16 mm Width × 6.6 mm Thickness ; MK1500 ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Shape | Square |
| Cutting Edge Length (L) | 16 mm | Insert Style | SNMU |
| Corner Radius (RE) | 1.2 mm | Insert Size | 160612 |
| Depth of Cut Maximum (APMX) | 16 mm | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 16 mm | Chip Breaker Type | MD16 |
| Inscribed Circle Diameter (IC) | 16 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 6.6 mm | Tool Type | Double sided Inserts |
| Insert Included Angle (EPSR) | 0 Degrees | Coating Process | CVD |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 8 |
| Grade | MK1500 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.046
