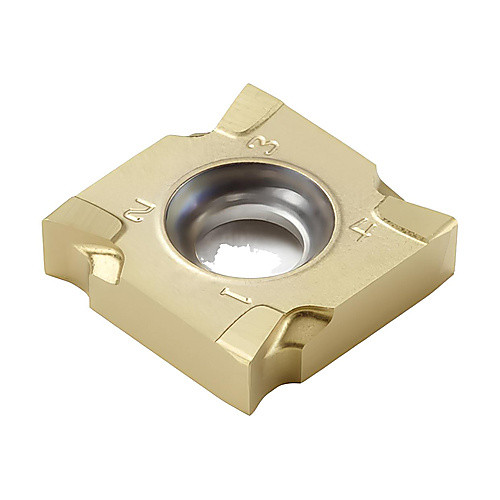

SNHQ 120508TR4-M07 GRADE F40M INSERT
Milling Insert; 5.4 mm Length × 5.4 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 5.4 mm | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | SNHQ |
| Depth of Cut Maximum (APMX) | 0.2047″ | Insert Size | 120508 |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | Q |
| Insert Thickness (S) | 5.4 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.022
