XOMX120416TR-M12
Milling Insert; 0.4567″ Length × 0.322″ Width × 0.199″ Thickness ; MP3000 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %

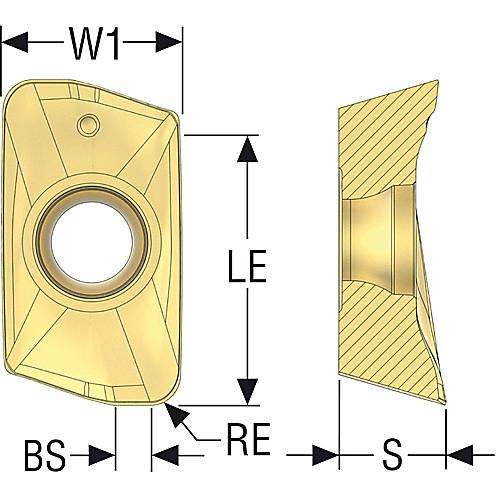

| Applicable Material | | Steel | | Grade | MP3000 |
| Cutting Edge Length (L) | 0.4567″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.063″ | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.472″ | Insert Size | 120416 |
| Insert Width (W1) | 0.322″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3228″ | Chip Breaker Type | M12 |
| Insert Thickness (S) | 0.199″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.015
