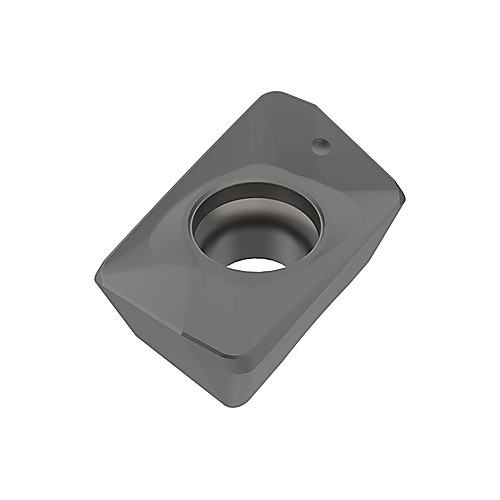

XOMX 120408TR-M12 GRADE MK1500 INSERT
Milling Insert; 13.83 mm Length × 8.18 mm Width × 5.05 mm Thickness ; MK1500 ; Carbide ; TiCN|Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 13.83 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.8 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.4567″ | Insert Size | 120408 |
| Insert Width (W1) | 8.18 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3228″ | Chip Breaker Type | M12 |
| Insert Thickness (S) | 5.05 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 10 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
