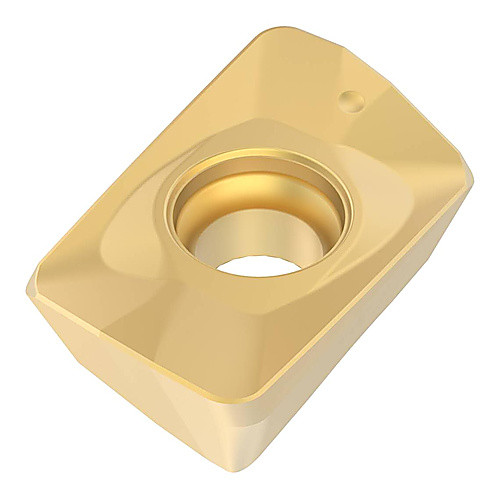

XOMX10T316TR-M09
Milling Insert; XOMX10T316TR-M09 F40M F40M × 0.27″ Width × 0.151″ Thickness ; Carbide ; TiAlN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.3661″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.063″ | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.374″ | Insert Size | 10T316 |
| Insert Width (W1) | 0.27″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.2717″ | Chip Breaker Type | M09 |
| Insert Thickness (S) | 0.151″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
