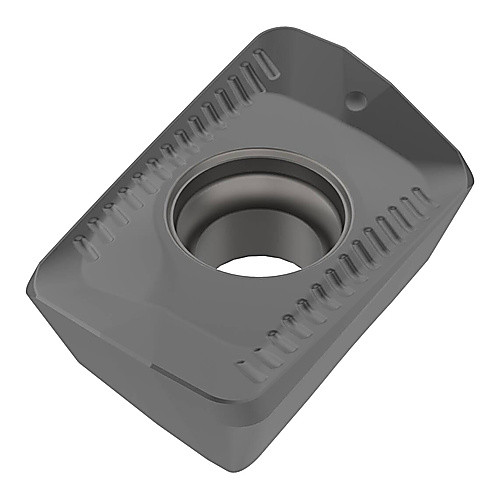

XOMX 10T308TR-ME07 GRADE MM4500 INSERT
Milling Insert; 11.07 mm Length × 6.86 mm Width × 3.83 mm Thickness ; MM4500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | | Coating | | Al2O3 | TiCN | |
| Cutting Edge Length (L) | 11.07 mm | Grade | MM4500 |
| Corner Radius (RE) | 0.8 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.374 | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 6.86 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.83 mm | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 22 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
