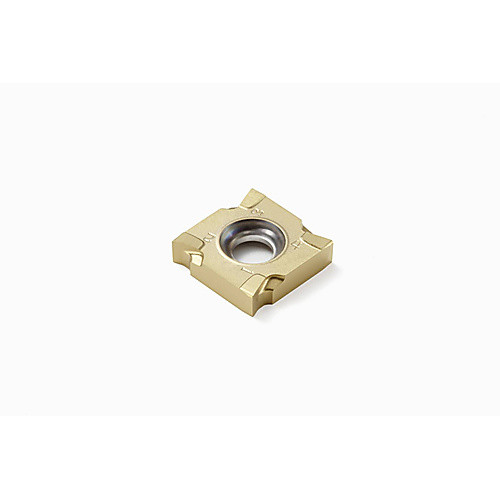

SNHQ 110202TR4-M07 GRADE F40M INSERT
Milling Insert; 2.3 mm Length × 2.3 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 2.3 mm | Shape | Square |
| Corner Radius (RE) | 0.2 mm | Insert Style | SNHQ |
| Depth of Cut Maximum (APMX) | 0.0827″ | Insert Size | 110202 |
| Insert Width (W1) | 0.4331″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 11 mm | Chip Breaker Type | Q |
| Insert Thickness (S) | 2.3 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.007
