XNEX080616TR-MD15 MK1500
Milling Insert; XNEX080616TR-MD15 MK1500 MK1500 × 0.254″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %

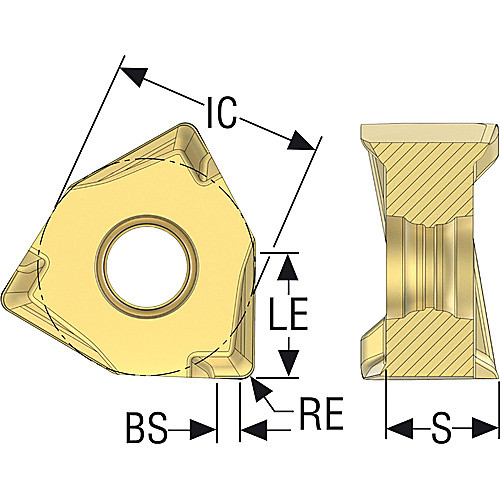

| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 0.2953″ | Shape | Trigon |
| Corner Radius (RE) | 0.063″ | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.295″ | Insert Size | 80616 |
| Insert Width (W1) | 0.4913″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.491″ | Chip Breaker Type | MD15 |
| Insert Thickness (S) | 0.254″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 88.28 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
