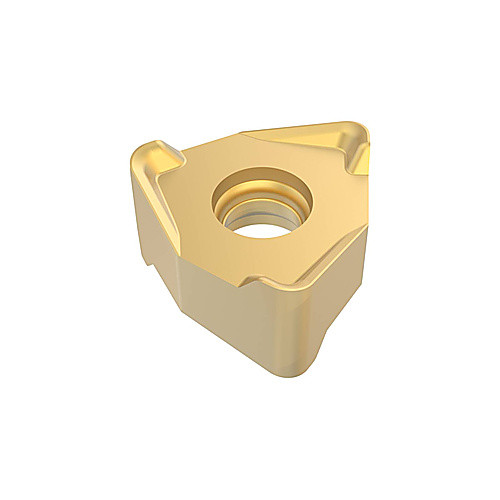

XNEX080616TR-MD15 GRADE F40M INSERT
Milling Insert; 7.5 mm Length × 6.45 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 7.5 mm | Shape | Trigon |
| Corner Radius (RE) | 1.6 mm | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.2953″ | Insert Size | 80616 |
| Insert Width (W1) | 0.4913″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.48 mm | Chip Breaker Type | MD15 |
| Insert Thickness (S) | 6.45 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
