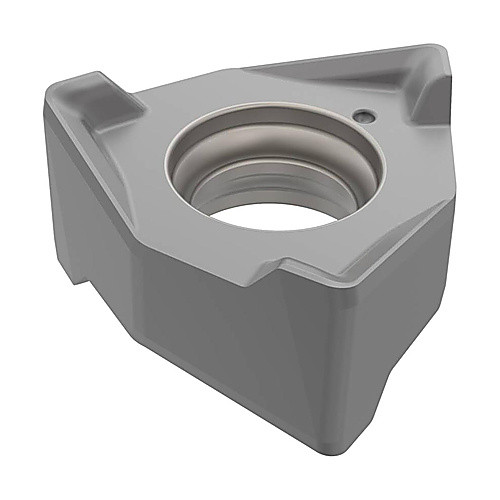

XNEX040308TR-M08
Milling Insert; XNEX040308TR-M08 MK1500 MK1500 × 0.13″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 0.1575″ | Shape | Trigon |
| Corner Radius (RE) | 0.031″ | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.157″ | Insert Size | 40308 |
| Insert Width (W1) | 0.2638″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.264″ | Chip Breaker Type | M08 |
| Insert Thickness (S) | 0.13″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 88 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
