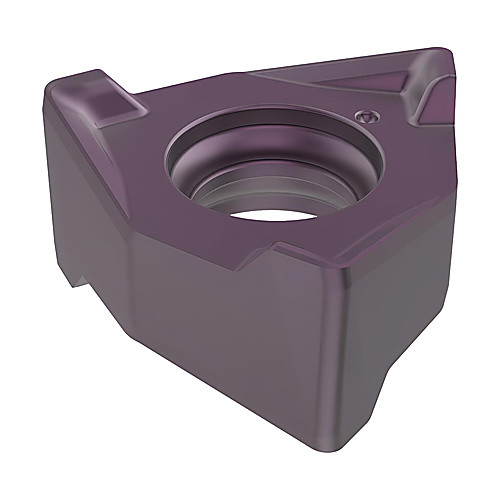

XNEX040304TR-M08 GRADE MK2050 INSERT
Milling Insert; 4 mm Length × 3.29 mm Thickness ; MK2050 ; Carbide ; | TiAlN | TiSiN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK2050 |
| Cutting Edge Length (L) | 4 mm | Shape | Trigon |
| Corner Radius (RE) | 0.4 mm | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.1575″ | Insert Size | 40304 |
| Insert Width (W1) | 0.2638″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 6.7 mm | Chip Breaker Type | M08 |
| Insert Thickness (S) | 3.29 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiAlN | TiSiN | | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
