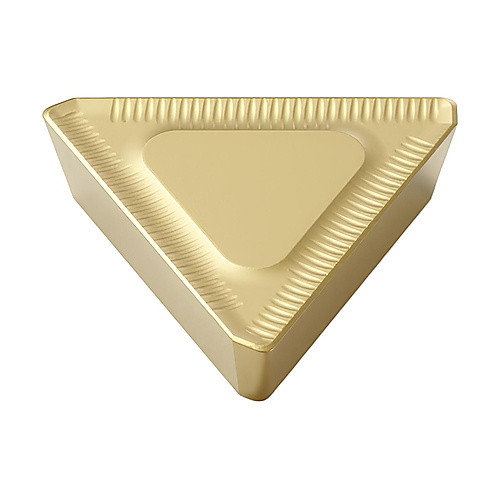

TPKR2204PDTR-ME13 GRADE T25M INSERT
Milling Insert; 17.5 mm Length × 4.76 mm Thickness ; T25M ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 17.5 mm | Shape | Triangle |
| Corner Radius (RE) | 0.6 mm | Insert Style | TPKR |
| Depth of Cut Maximum (APMX) | 0.689″ | Insert Size | 2204 |
| Insert Width (W1) | 0.689″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | N |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 3 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.026
