TNGN1103PNS

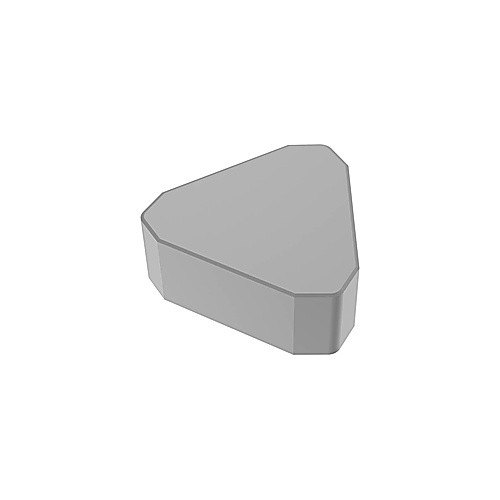

Milling Insert; TNGN1103PNS CBN200 CBN200 × 0.433″ Width × 1/8″ Thickness ; CBN ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Hard Materials | | Grade | CBN200 |
| Cutting Edge Length (L) | 0.433″ | Shape | Triangle |
| Corner Radius (RE) | 0.031″ | Insert Style | TNGN |
| Depth of Cut Maximum (APMX) | 0.13″ | Insert Size | 1103 |
| Insert Width (W1) | 0.433″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | None |
| Insert Thickness (S) | 1/8″ | Cutting Edge Material | CBN |
| Insert Included Angle (EPSR) | 60 Degrees | Tool Type | Double sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
