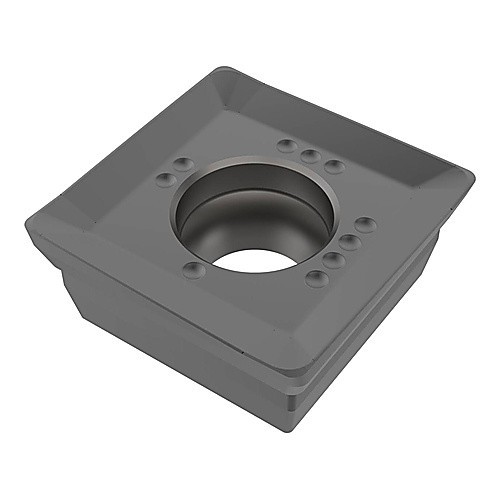

SONX09T304TR-M10
Milling Insert; SONX09T304TR-M10 T350M T350M × 0.376″ Width × 0.156″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T350M |
| Cutting Edge Length (L) | 0.376″ | Shape | Square |
| Corner Radius (RE) | 0.016″ | Insert Style | SONX |
| Depth of Cut Maximum (APMX) | 0.376″ | Insert Size | 09T304 |
| Insert Width (W1) | 0.376″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.376″ | Chip Breaker Type | M10 |
| Insert Thickness (S) | 0.156″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
