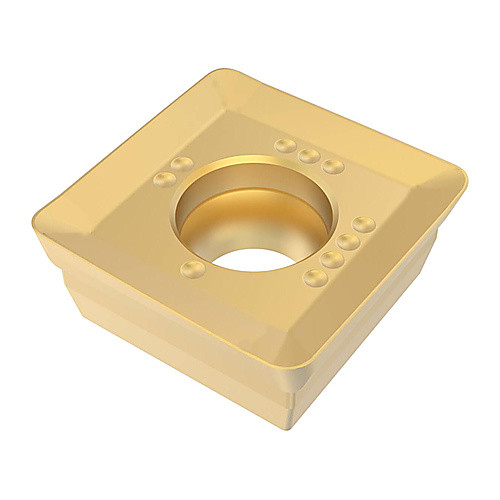

SONX09T304TR-M10 GRADE F40M INSERT
Milling Insert; 9.55 mm Length × 9.55 mm Width × 3.97 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 9.55 mm | Shape | Square |
| Corner Radius (RE) | 0.4 mm | Insert Style | SONX |
| Depth of Cut Maximum (APMX) | 0.315″ | Insert Size | 09T304 |
| Insert Width (W1) | 9.55 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.5 mm | Chip Breaker Type | M10 |
| Insert Thickness (S) | 3.97 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
