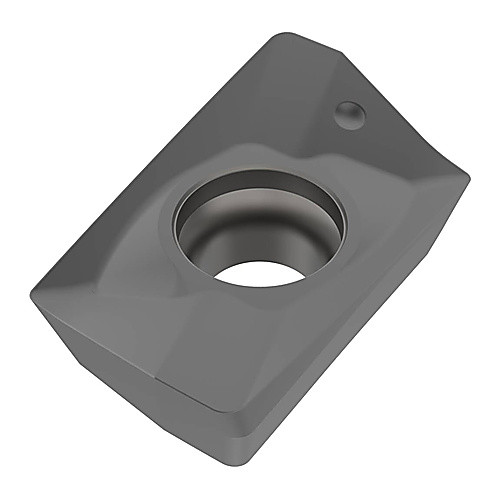

XOMX180616R-M10
Milling Insert; XOMX180616R-M10 MM4500 MM4500 × 0.441″ Width × 0.253″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | | Grade | MM4500 |
| Cutting Edge Length (L) | 0.6693″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.063″ | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.65″ | Insert Size | 180616 |
| Insert Width (W1) | 0.441″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.4409″ | Chip Breaker Type | M10 |
| Insert Thickness (S) | 0.253″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
