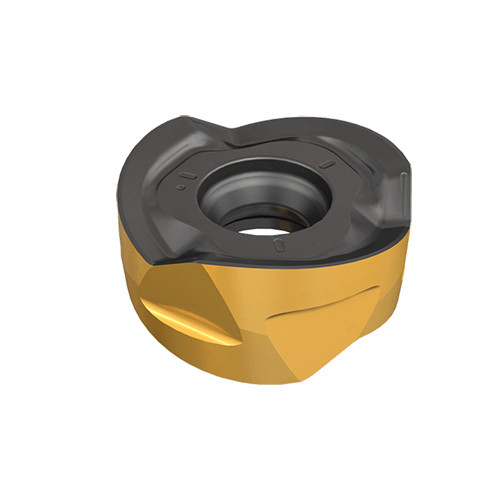

H606 RXCU 1206-AXMP IC330
Milling Insert; H606 RXCU 1206-AXMP IC330 IC330 × 0.232″ Thickness ; Carbide ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |

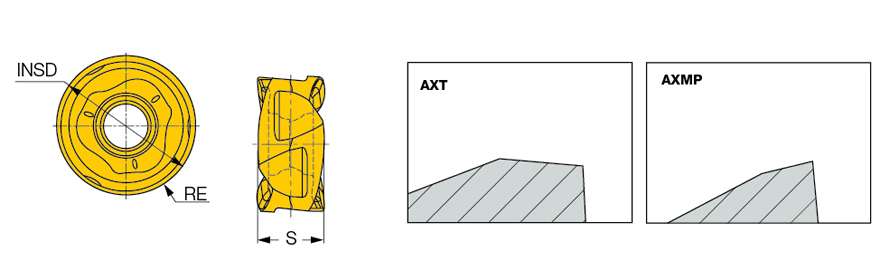

| Corner Radius (RE) | 0.2362″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.232″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Coating | TiCN+TiN | Number of Cutting Edges | 6 |
| Grade | IC330 | Measurement Type | Inch |
| Shape | Round | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
Product Features
| Family Description | Double-sided round inserts with six cutting edges for profile milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
