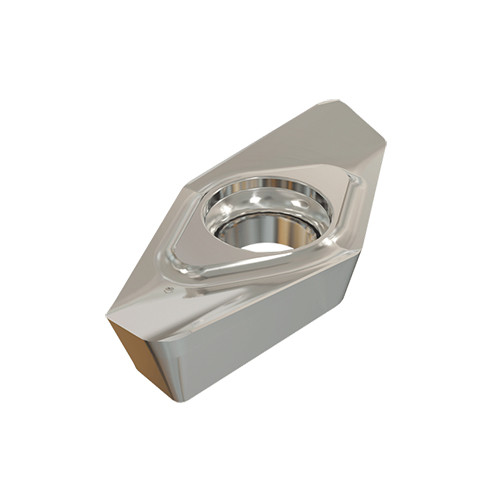

HSM90S APCR 140530R-P IC08
Milling Insert; 0.984″ Length × 0.492″ Width × 0.23″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Round |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |

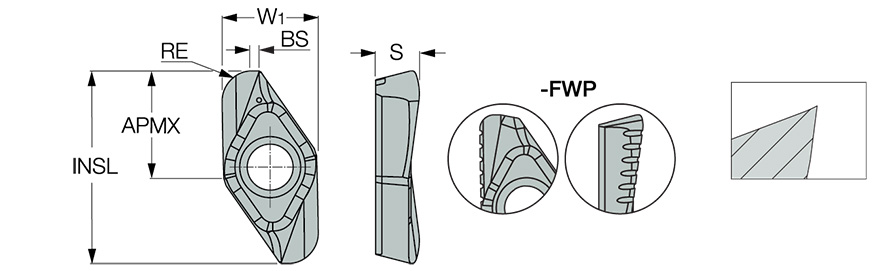

| Cutting Edge Length (L) | 0.984″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.984″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1181″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.5315″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.492″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.23″ | Cutting Edge Effective Length (LE) | 0.394″ |
| Wiper Edge Length (BS) | 0.043″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum at high rotation speed. The insert features a groove on its bottom, designed to improve resistance to centrifugal force | Country of Origin | Israel |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw The inserts should be mounted on the cutter in an alternating edge configuration order when using -FWP geometry |
Shipping Info
Package Weight
0.028
