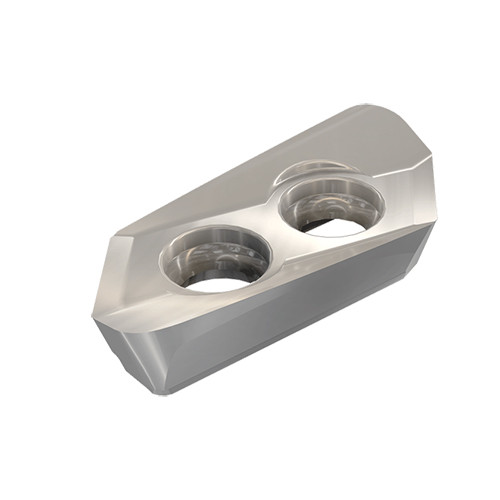

HSM90S APCR 220750R-P IC08
Milling Insert; 1.138″ Length × 0.516″ Width × 0.256″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shape | Round |
| Cutting Edge Length (L) | 1.138″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 1.138″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.1969″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8661″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.516″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.256″ | Cutting Edge Effective Length (LE) | 1.138″ |
| Wiper Edge Length (BS) | 0.035″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum at high rotational speed.The insert features a groove on its bottom, designed to improve resistance to centrifugal force | Country of Origin | Israel |
| Remarks | When machining at very high cutting speed it is recommended to replace the screw when replacing the insert. |
Shipping Info
Package Weight
0.037
