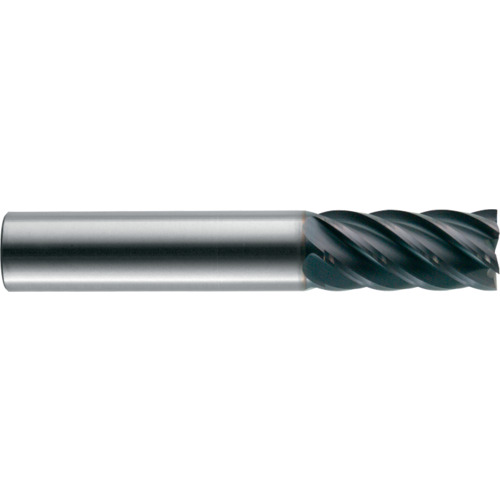

ST-646-20-C 0.625-IN DIA
Corner Radius End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 6 FL ; TiCN ; Series ST-646
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Chamfer Width (CHW) | 0.009″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3-1/2″ | Decimal Equivalent | 0.625″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | ST-646 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
