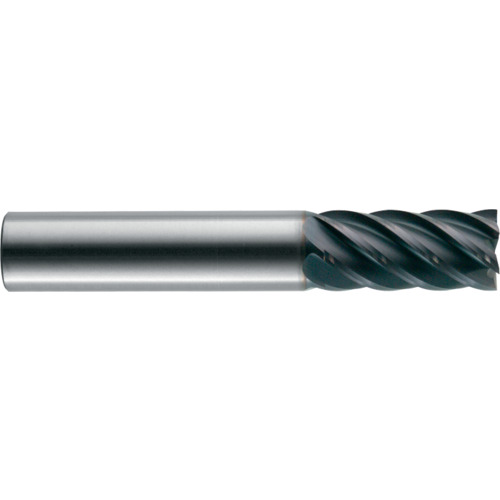

ST-646-16-C 0.5-IN DIA 6-
Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 6 FL ; TiCN ; Series ST-646
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Chamfer Width (CHW) | 0.006″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.5″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | ST-646 |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
