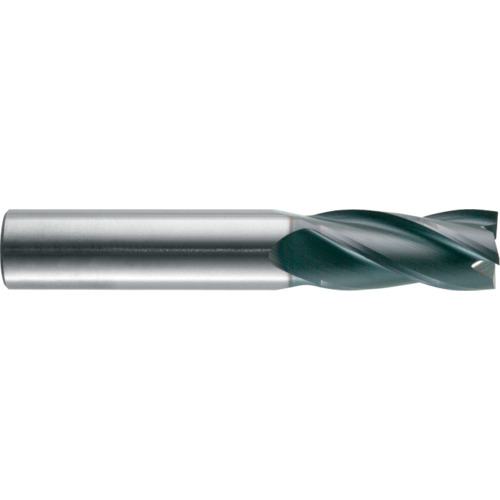

ST-434-08-C 0.25-IN DIA 4
Corner Break End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; TiCN ; Series ST-434
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Break |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Chamfer Width (CHW) | 0.003″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.25″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | ST-434 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
