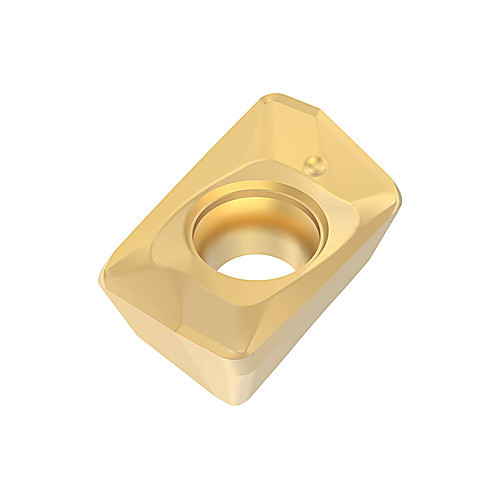

XOMX060208R-M05 F40M
Milling Insert; 0.2165″ Length × 0.16″ Width × 0.096″ Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.2165″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.031″ | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.228″ | Insert Size | 60208 |
| Insert Width (W1) | 0.16″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1614″ | Chip Breaker Type | M05 |
| Insert Thickness (S) | 0.096″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
3.32000
Package Width
1.00000
Package Height
.16000
Package Weight
0.004
