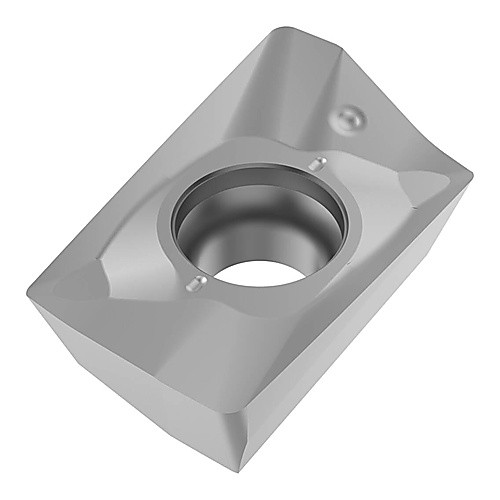

XOEX180631FR-E10
Milling Insert; XOEX180631FR-E10 H25 H25 × 0.441″ Width × 1/4″ Thickness ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H25 |
| Cutting Edge Length (L) | 0.6693″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.122″ | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.65″ | Insert Size | 180631 |
| Insert Width (W1) | 0.441″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.4409″ | Chip Breaker Type | E10 |
| Insert Thickness (S) | 1/4″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
