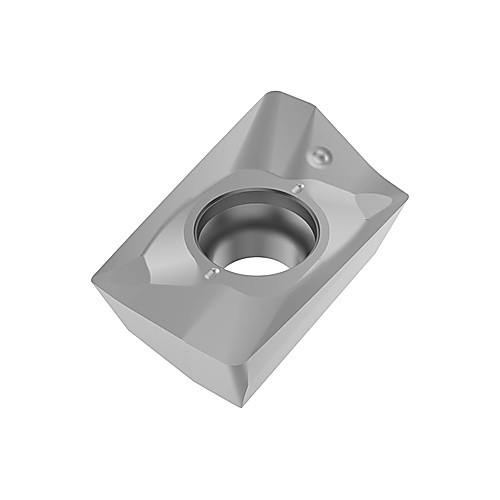

XOEX 180604FR-E10 GRADE H25 INSERT
Milling Insert; 19.31 mm Length × 11.2 mm Width × 6.35 mm Thickness ; H25 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H25 |
| Cutting Edge Length (L) | 19.31 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.4 mm | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.65″ | Insert Size | 180604 |
| Insert Width (W1) | 11.2 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.4409″ | Chip Breaker Type | E10 |
| Insert Thickness (S) | 6.35 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 29 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
