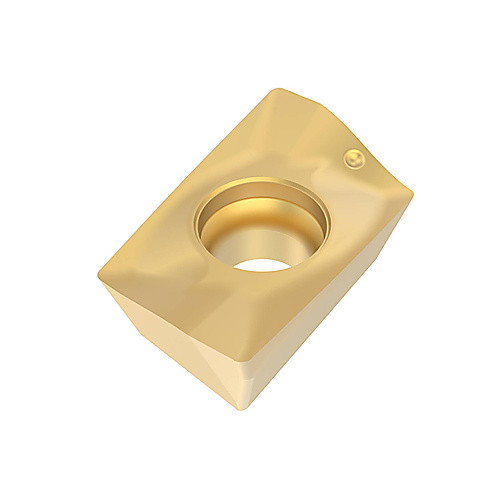

XOEX 120420FR-E06 GRADE F15M INSERT
Milling Insert; 13.88 mm Length × 8.18 mm Width × 5.03 mm Thickness ; F15M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | F15M |
| Cutting Edge Length (L) | 13.88 mm | Shape | Parallelogram |
| Corner Radius (RE) | 2 mm | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.4724″ | Insert Size | 120420 |
| Insert Width (W1) | 8.18 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3228″ | Chip Breaker Type | E06 |
| Insert Thickness (S) | 5.03 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 27 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
