XOEX120408ZZR-M07

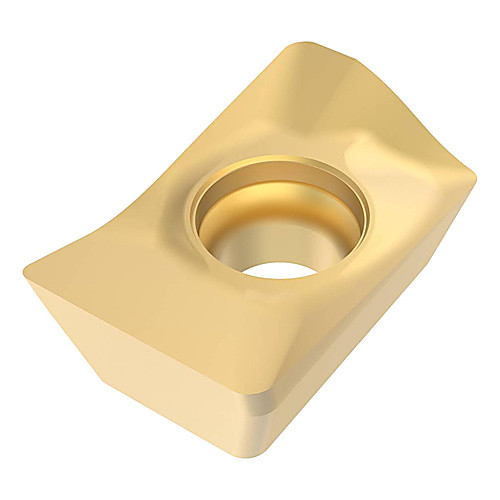

Milling Insert; XOEX120408ZZR-M07 F40M F40M × 0.322″ Width × 0.198″ Thickness ; Carbide ; TiAlN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.437″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.031″ | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.472″ | Insert Size | 120408 |
| Insert Width (W1) | 0.322″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3228″ | Chip Breaker Type | M07 |
| Insert Thickness (S) | 0.198″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
