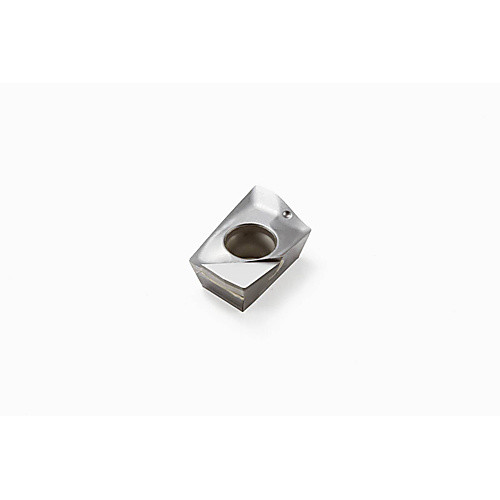

XOEX120404FR-L2
Milling Insert; XOEX 120404FR-L2 PCD05 PCD05 × 0.322″ Width × 0.195″ Thickness ; PCD ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | PCD05 |
| Cutting Edge Length (L) | 0.5394″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.016″ | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.257″ | Insert Size | 120404 |
| Insert Width (W1) | 0.322″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.322″ | Chip Breaker Type | None |
| Insert Thickness (S) | 0.195″ | Cutting Edge Material | PCD |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.009
