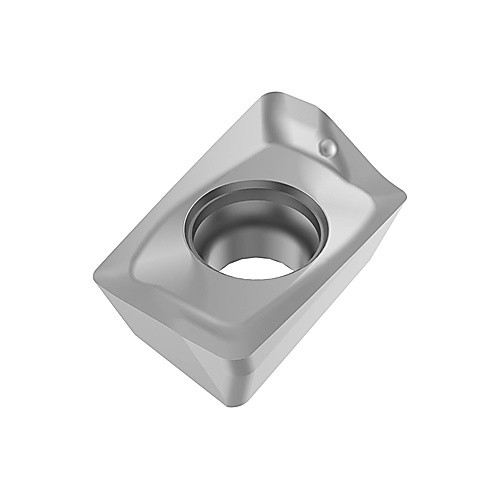

XOEX060204FR-E03
Milling Insert; XOEX060204FR-E03 H15 H15 × 0.16″ Width × 0.096″ Thickness ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H15 |
| Cutting Edge Length (L) | 0.2362″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.016″ | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.228″ | Insert Size | 60204 |
| Insert Width (W1) | 0.16″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1614″ | Chip Breaker Type | E03 |
| Insert Thickness (S) | 0.096″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
