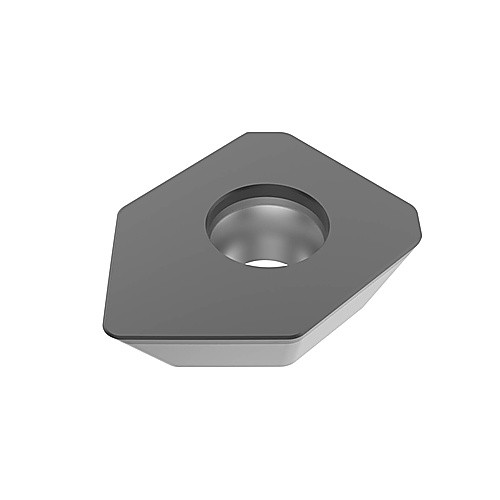

SEEX1204ZZTN-D16-LF
Milling Insert; SEEX1204ZZTND16LF CBN200 CBN200 × 1/2″ Width × 0.187″ Thickness ; CBN ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Hard Materials | | Grade | CBN200 |
| Cutting Edge Length (L) | 1/2″ | Shape | Square |
| Corner Radius (RE) | 0.039″ | Insert Style | SEEX |
| Depth of Cut Maximum (APMX) | 1/2″ | Insert Size | 1204 |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | D16 |
| Insert Thickness (S) | 0.187″ | Cutting Edge Material | CBN |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
