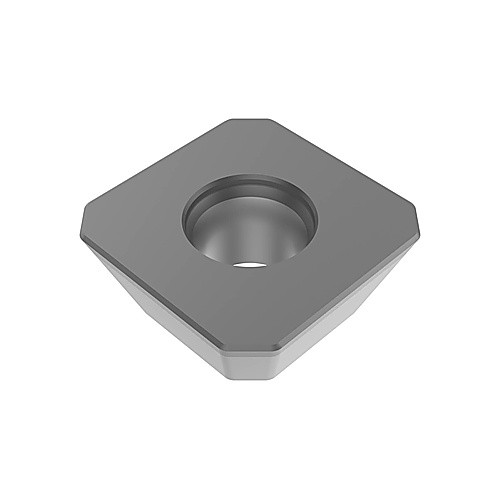

SEEX 09T3AFTN-D09-LF GRADE CBN200 INSERT
Milling Insert; 9.52 mm Length × 3.97 mm Thickness ; CBN200 ; PCBN ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Hard Materials | | Grade | CBN200 |
| Cutting Edge Length (L) | 9.52 mm | Shape | Square |
| Corner Radius (RE) | 0.5 mm | Insert Style | SEEX |
| Depth of Cut Maximum (APMX) | 0.1126″ | Insert Size | 09T3 |
| Insert Width (W1) | 0.3748″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | D09 |
| Insert Thickness (S) | 3.97 mm | Cutting Edge Material | PCBN |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
