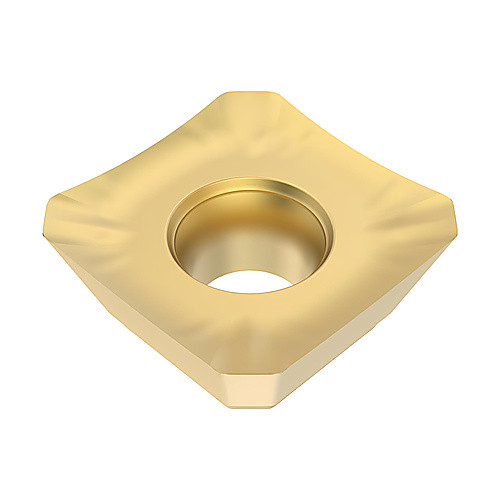

SEEX09T3AFN-E04
Milling Insert; 0.3748″ Length × 3/8″ Width × 0.156″ Thickness ; F15M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | F15M |
| Cutting Edge Length (L) | 0.3748″ | Shape | Square |
| Corner Radius (RE) | 0.0118″ | Insert Style | SEEX |
| Depth of Cut Maximum (APMX) | 3/8″ | Insert Size | 09T3 |
| Insert Width (W1) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | E04 |
| Insert Thickness (S) | 0.156″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
