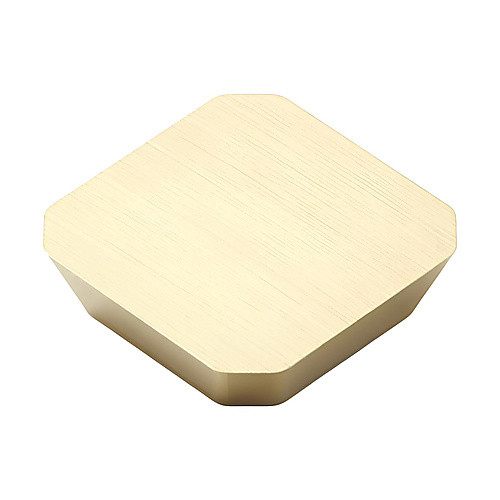

SEAN 1203AFN-E12 GRADE F15M INSERT
Milling Insert; 12.7 mm Length × 12.7 mm Width × 3.18 mm Thickness ; F15M ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | F15M |
| Cutting Edge Length (L) | 12.7 mm | Shape | Square |
| Corner Radius (RE) | 1.6 mm | Insert Style | SEAN |
| Depth of Cut Maximum (APMX) | 0.3465″ | Insert Size | 1203 |
| Insert Width (W1) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | N |
| Insert Thickness (S) | 3.18 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
