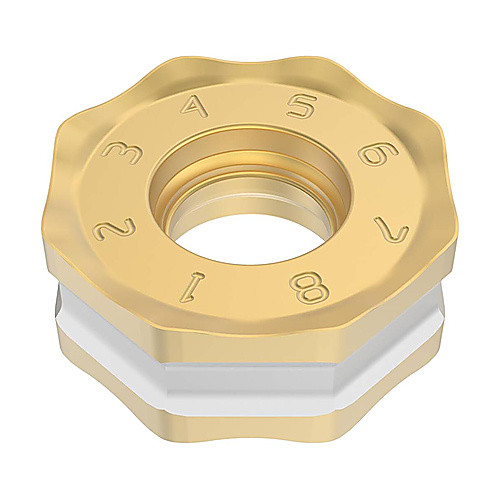

ONMU 050410ANTN-ME10 GRADE F40M INSERT
Milling Insert; 12 mm Length × 0.4724″ Width × 4 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 12 mm | Shape | Octagon |
| Corner Radius (RE) | 0.0394″ | Insert Style | ONMU |
| Depth of Cut Maximum (APMX) | 0.1535″ | Insert Size | 50410 |
| Insert Width (W1) | 0.4724″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12 mm | Chip Breaker Type | U |
| Insert Thickness (S) | 4 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 16 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
