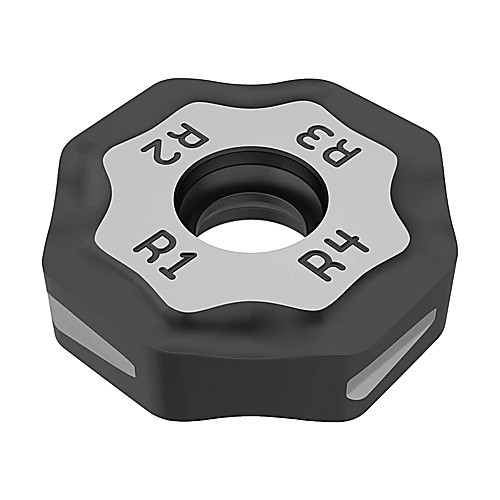

ONEU090520ZZTN4-M14
Milling Insert; ONEU090520ZZTN4M14 MK1500 MK1500 × 0.866″ Width × 0.228″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 0.8429″ | Shape | Octagon |
| Corner Radius (RE) | 0.0787″ | Insert Style | ONEU |
| Depth of Cut Maximum (APMX) | 0.248″ | Insert Size | 90520 |
| Insert Width (W1) | 0.866″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.8429″ | Chip Breaker Type | M14 |
| Insert Thickness (S) | 0.228″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 135 Degrees | Tool Type | Double sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.062
