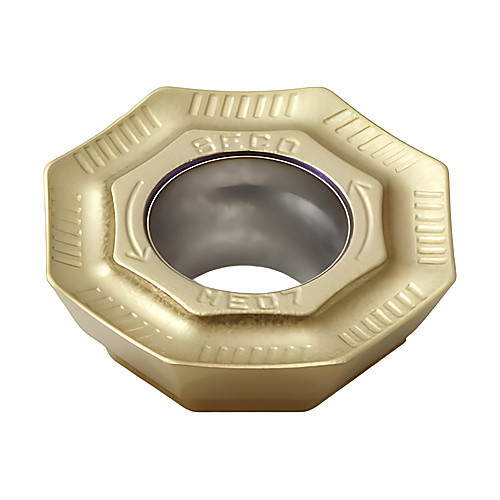

OFEX05T305TN-ME07
Milling Insert; 1/2″ Length × 1/2″ Width × 0.148″ Thickness ; T25M ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 1/2″ | Shape | Octagon |
| Corner Radius (RE) | 0.0197″ | Insert Style | OFEX |
| Depth of Cut Maximum (APMX) | 0.1929″ | Insert Size | 05T305 |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | ME07 |
| Insert Thickness (S) | 0.148″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 135 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 8 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.009
