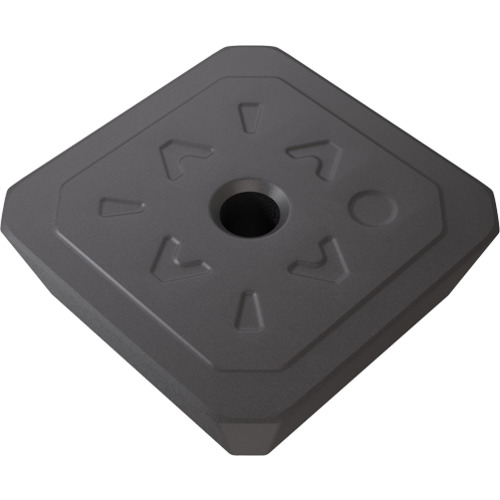

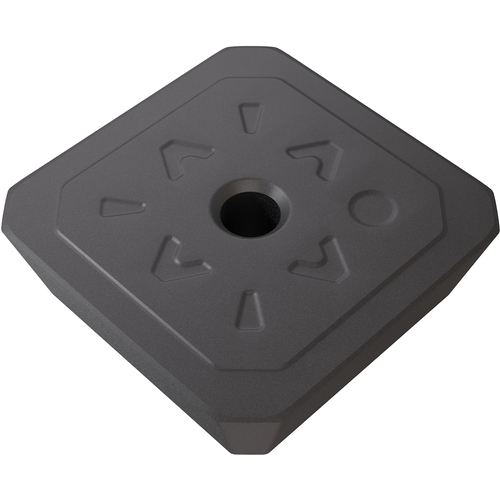

SDKN1504AETN-PW-YG602/SDKN53AETN-PW
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | SDKN |
| Corner Radius (RE) | 0.016″ | Clearance Angle Major (AN) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 8-1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/8″ | Chip Breaker Type | PW |
| Insert Thickness (S) | 0.185″ | Series/List # | SDKN |
| Wiper Edge Length (BS) | 0.077″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 45 Degrees | Tool Type | Milling Insert |
| Coating | TiAlN | Coating Process | PVD |
| Grade | YG602 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.342
