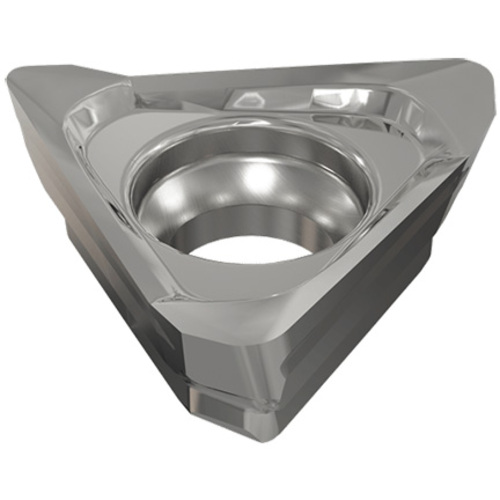

HM390 TPCR1003PDFR-P IC28
Milling Insert; HM390TPCR1003PDFR-P IC28 × 0.157″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shape | Triangle |

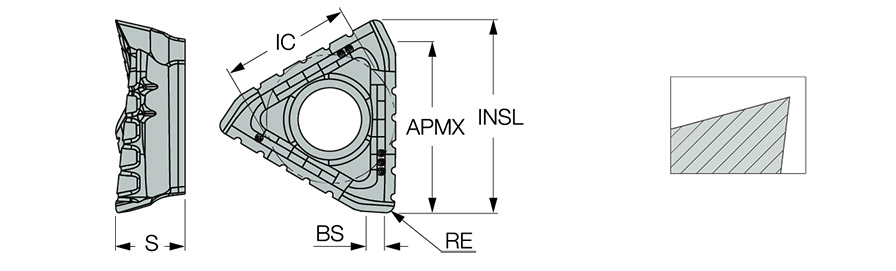

| Insert Length (INSL) | 0.429″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.295″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.157″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.039″ | Cutting Edge Effective Length (LE) | 0.315″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges feature positive and polished rake for machining non-ferrous materials | Country of Origin | Israel |
| Remarks | Peripherally ground inserts, feature super positive and polished rake face for milling non-ferrous materials |
Shipping Info
Package Weight
0.003
