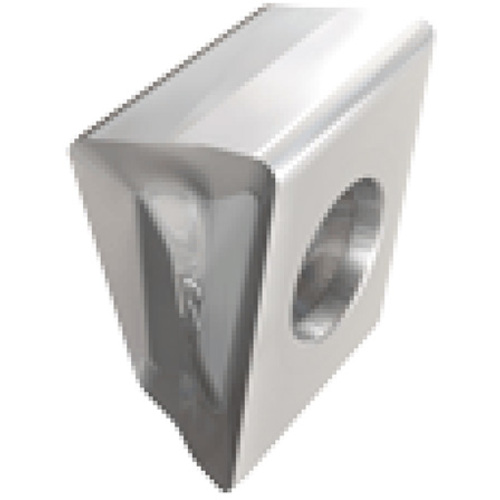

T490 LNAR 1607PN-R-P IC07
Milling Insert; T490 LNAR 1607PN-R-P IC07 × 0.278″ Width × 0.626″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

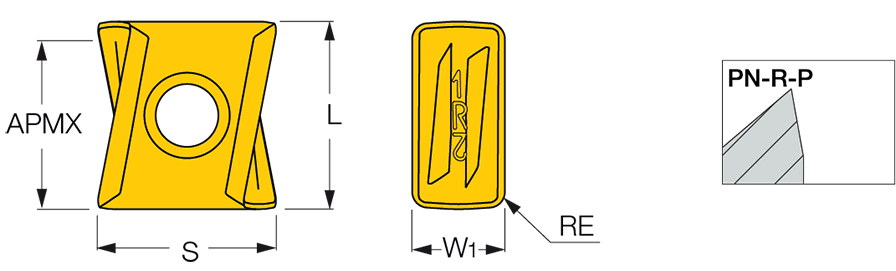

| Insert Length (INSL) | 0.671″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.278″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.626″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC07 |
Product Features
| Family Description | HELITANG - Tangentially clamped, precision ground inserts with 4 helical cutting edges and a super positive rake for machining aluminum. | Country of Origin | Israel |
| Remarks | For T490 ELN-13 on diameter .984 at ap=.197, fz=.006 at ap=.394, fz=.004 |
Shipping Info
Package Weight
0.041
