T490 LNMT 1306PNR-FF IC830
Milling Insert; T490 LNMT 1306PNR-FF 830 IC830 × 0.262″ Width × 0.455″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |

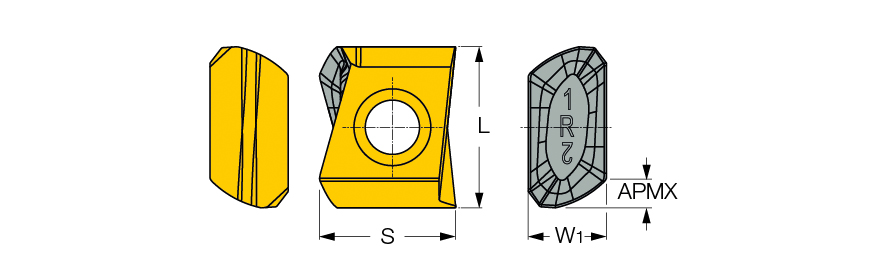

| Insert Length (INSL) | 0.539″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.039″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.262″ | Minimum Feed per Tooth (fz(min)) | 0.0197 ″/tooth |
| Insert Thickness (S) | 0.455″ | Number of Cutting Edges | 2 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | Rectangle |
Product Features

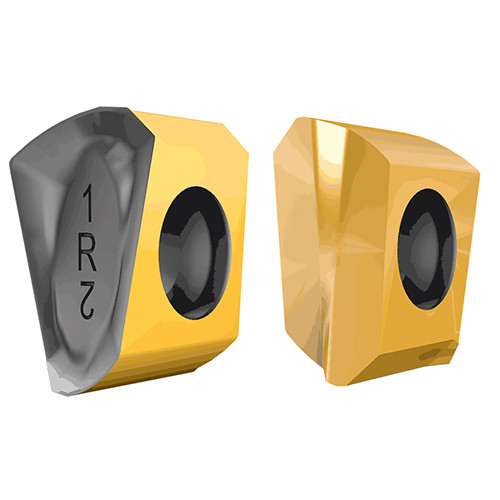

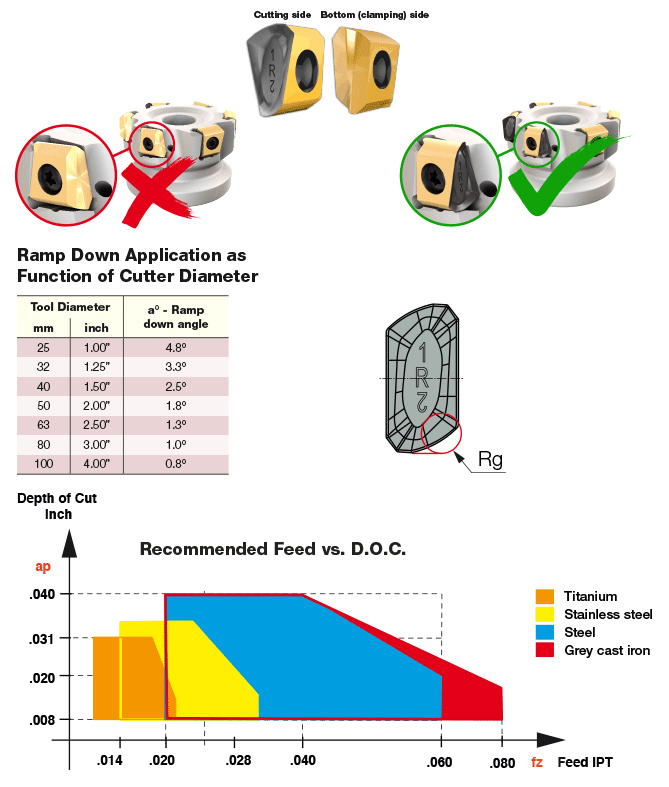

| Family Description | Tangentially clamped inserts with 2 cutting edges for fast feed milling. The two cutting edges can be identified by their black surface treated rake face. Do not use the bottom golden color side, it will not cut the material properly. | Country of Origin | Israel |
| Remarks | You can machine also at up to .472 D.O.C. but in this case a regular corner radius insert feed recommendations should be applied. |
Shipping Info
Package Weight
0.022
