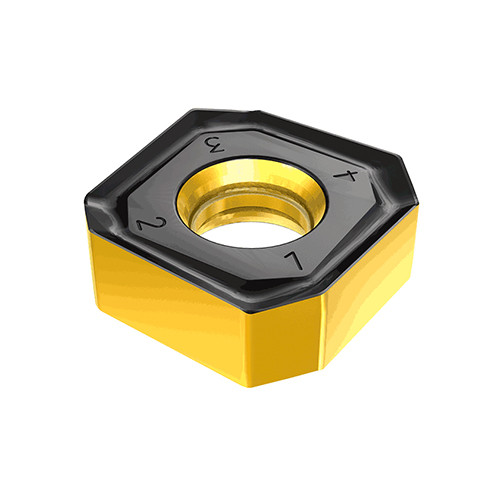

S845 SNMU 1806ANR-MM IC808
Milling Insert; S845 SNMU 1806ANR-MMIC808 IC808 × 0.276″ Thickness ; Carbide ; TiAlN+AlTiN+TiN

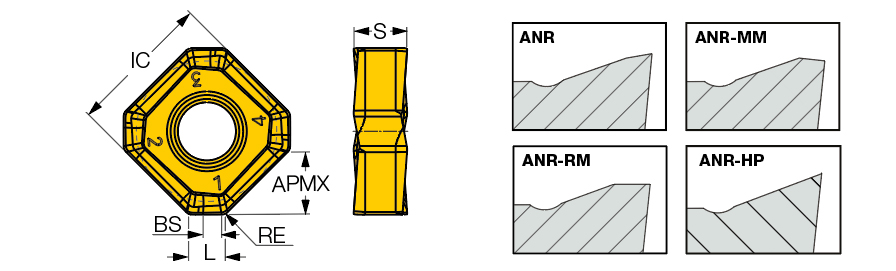

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.138″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.74″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.276″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.094″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Square inserts with 8 helical right-hand cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
0.056
