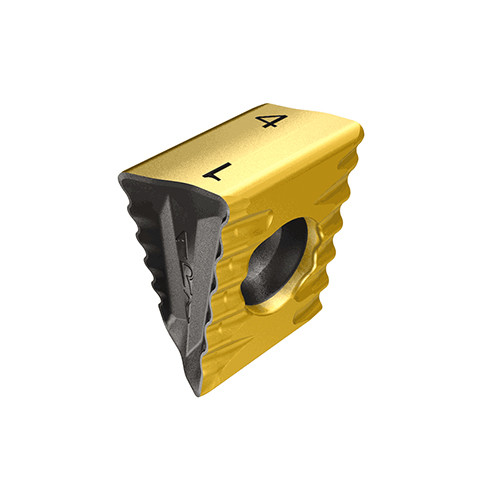

T490 LNMT 1306PNTR-FW IC830
Milling Insert; T490 LNMT 1306PNTR-FW IC830 × 0.262″ Width × 0.514″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Triangle |
| Application | | Facing | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

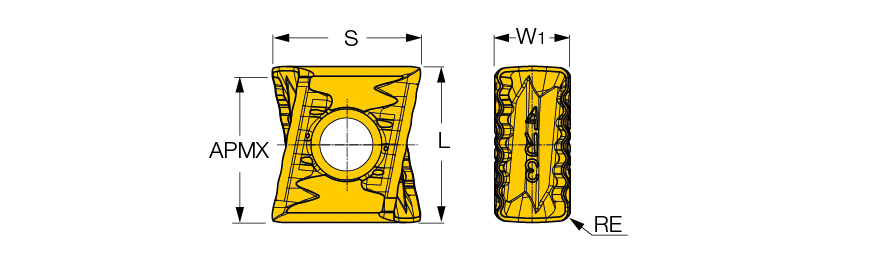

| Insert Length (INSL) | 0.541″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.262″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.514″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Tangentially clamped inserts with 4 serrated and helical cutting edges. | Country of Origin | Israel |
| Remarks | T490 LNMT 1306PNTR-FW cannot be used for ramping down and full slot cutters Only T490 LNMT1306PNR-RDPFW can be used for ramping down, for details click on the item, then on More Info |
Shipping Info
Package Weight
0.024
