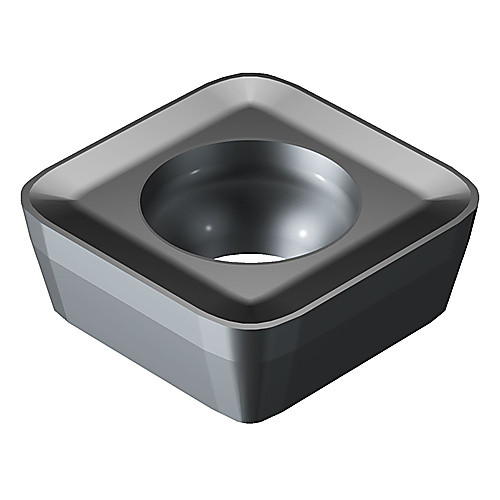

R210140514EKM 3040 INSERT
Milling Insert; 10.83 mm Length × 5.26 mm Thickness ; 3040 ; Carbide ; | Al2O3 | TiC |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Grade | 3040 |
| Cutting Edge Length (L) | 10.83 mm | Shape | Square |
| Corner Radius (RE) | 1.4 mm | Insert Style | R210.14 05 14E-KM |
| Inscribed Circle Diameter (IC) | 14.6 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 5.26 mm | Chip Breaker Type | KM |
| Insert Included Angle (EPSR) | 80 Degrees | Hole Diameter | 5.69 mm |
| Coating | | Al2O3 | TiC | | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.302
